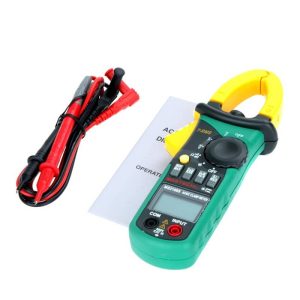

MS2108S คลิปแอมป์ True RMS แบรนด์ Matech

MS2108S คลิปแอมป์ True RMS แบรนด์ Matech สามารถวัดค่า AC/DC, Resistance, Frequency, Duty Cycle เเละ Capacitance พร้อมฟังชั่น การทดสอบไดโอด การวัดแบบ Max/Min การเก็บข้อมูลขณะวัด วัดแบบ Non-Contact Voltage detection ฟังก์ชันการวัดค่า True RMS  (สำหรับ AC A และ AC V) และโหมดป้องกันการโอเวอร์โหลด

  • ย่านการวัด AC voltage : 660 mV / 6.6 / 66/600 V ± 8%
  • ย่านการวัด DC voltage : 660 mV / 6.6 / 66/600 V ± 0%

สอบถามข้อมูลสั่งซื้อ ขอใบเสนอราคา

รหัสสินค้า: MS2108S หมวดหมู่: ,

MS2108S คลิปแอมป์ True RMS แบรนด์ Matech สามารถวัดค่า AC/DC Voltage เเละ AC/DC Current, Resistance, Frequency, Duty Cycle เเละ Capacitance

มีย่านการวัด AC voltage: 660 mV / 6.6 / 66/600 V ± 8% DC voltage: 660 mV / 6.6 / 66/600 V ± 0% มาพร้อมฟังชั่นมากมาย เช่น การทดสอบไดโอด การวัดแบบ Max/Min การเก็บข้อมูลขณะวัด วัดแบบ Non-Contact Voltage detection ฟังก์ชันการวัดค่า True RMS (สำหรับ AC A และ AC V) และโหมดป้องกันการโอเวอร์โหลด เป็นต้น

สามารถเลือกปรับย่านวัดแบบ Auto หรือ Manual ตัวเครื่องออกแบบมาได้มาตราฐาน IEC-61010-1 CAT III 600 Vคลิปแอมป์ True RMS แบรนด์ Matech รุ่น MS2108S มาพร้อมจอ LCD มีไฟ backlight และ Jaw Opening (ไฟขาหนีบ) ทำให้สะดวกในการใช้งานแม้ในที่แสงน้อย สินค้าคุณภาพ ขายราคาถูก จัดส่งทั่วไทย

Feature คลิปแอมป์ True RMS รุ่น MS2108S แบรนด์ Matech

  • comply with the IEC61010-1 & IEC61010-032 standard
  • double insulation (protection class 600 V CAT III and pollution degree 2)
  • The molding rubber case protects the meter, stronger
  • AC current, DC, AC voltage, DC voltage, frequency, duty cycle, resistance, capacitance, continuity and diode test.
  • Auto range and manual range
  • Data hold
  • True RMS value measuring function (for AC A and AC V range)
  • inrush current measuring function
  • Auto zero function (at DCA range)
  • maximum / minimum measurement
  • measure frequency through terminal
  • Jaw lighting
  • automatic shutdown

Specifications คลิปแอมป์ True RMS รุ่น MS2108S แบรนด์ Matech

  • Display : 6600 counts
  • DC current : 66A / 600A ± 0%
  • AC current : 66A / 600A ± 0%
  • DC voltage : 660 mV / 6.6 / 66/600 V ± 8%
  • AC voltage : 660 mV / 6.6 / 66/600 V ± 0%
  • Resistance : 660/6. 6k / 66k / 660k / 6.6M Ω ± 1. 0%, 66MΩ ± 0%
  • Capacity : 6.6 / / 66 / / 660 / / 6.6 m / 66mF ± 4. 0%
  • Frequency : 10 to 10kHz ± 2. 0% (from test terminal)
  • Frequency : 10 to 1kHz ± 2. 0% (of current clamp)
  • Duty cycle : 10% ~ 95% ± 0%
  • Continuity test with summer
  • Diode test
  • MAX. diameter for ladder: 26mm
  • Power : 1.5 V (AAA) x 3 (not included)
  • Size : 208mm x 78mm x 35mm
  • Package Contains : 1 * Digital Clamp Meter 1 * test leads
