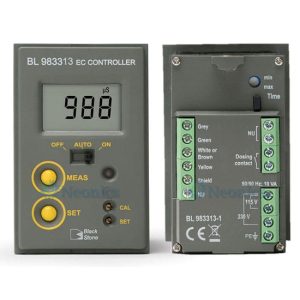

BL983313 EC Controller วัดและควบคุมค่าคอนดักติวิตี้ (ย่านวัด 1999μS/cm) พร้อมใบรับรอง Certificate

฿17,290.00

BL983313 EC Controller วัดและควบคุมค่าคอนดักติวิตี้ที่มีขนาดกะทัดรัด  ขั้นตอนการสอบเทียบทำได้ง่ายด้วย Trimmers ที่แผงด้านหน้า ผู้ใช้สามารถเลือกโหมดการ Dosing แบบอัตโนมัติหรือควบคุมแบบ Manual สินค้าคุณภาพจาก USA

  • ย่านวัด 0 ถึง 1999 μS/cm
  • ค่าความถูกต้อง ±2%
  • พร้อมใบรับรอง Certificate of Calibration

สอบถามข้อมูลสั่งซื้อ ขอใบเสนอราคา

BL983313 EC Controller วัดและควบคุมค่าคอนดักติวิตี้ (ย่านวัด μS/cm) เป็นเครื่องควบคุมค่าความนำไฟฟ้า Conductivity Controller ที่มีขนาดกะทัดรัด

ย่านการวัด 0 ถึง 1999 μS/cm มีค่าความถูกต้อง ±2% ขั้นตอนการสอบเทียบทำได้ง่ายด้วย Trimmers ที่แผงด้านหน้า ผู้ใช้สามารถเลือกโหมดการ Dosing แบบอัตโนมัติหรือควบคุมแบบ Manual ได้โดยใช้สวิตช์บนแผงด้านหน้า

มาพร้อมกับรีเลย์ทำให้สามารถสั่งการ Dosing Pump (contact normal open and closed when measure > setpoint) เมื่อค่าค่าความนำไฟฟ้า EC สูงกว่าหรือต่ำกว่าค่าที่ตั้งไว้ ถูกออกแบบมาสำหรับการใช้งานที่มีพื้นที่จำกัด สินค้าคุณภาพสูงพร้อมใบรับรอง Certificate of Calibration จาก USA ขายราคาถูก จัดส่งทั่วไทย

Feature BL983313

  • Adjustable Dry Contact Dosing Relay  : The BL983313 features a dosing relay that is activated when the reading is above a user programmable set point.
  • Programmable Overdose Protection : For enhanced safety the mini controller can be programmed to deactivate the dosing relay if the set point is not reached within a specified time interval. The overdosing timer is programmable from 5 to 30 minutes or disabled.
  • Relay Control Override : With the flick of a switch the mini controller’s relay can be disabled (Off), placed in control (Auto), or be activated for manual operation (On) which is useful for priming a dosing pump.
  • Multicolor LED Indicator : Multicolor LED indicator allows an operator to quickly check the status of the controller.  Green = Meter in measurement mode and reading is below the set point.  Orange/Yellow = Reading is above the set point and the relay is activated.  Blinking Red = Indicates an alarm condition such as when the maximum dosing time has been exceeded.

Specifications BL983313

  • Range 0 to 1999 μS/cm
  • Resolution 1 μS/cm
  • Accuracy (@25°C/77°F) ±2% full scale
  • Calibration manual, with CAL trimmer
  • Dosing Relay maximum 2A (fuse protected), 250 VAC, 30 VDC
  • Dosing Selection relay activated (contact closed) when the measurement reading is greater than the setpoint
  • Setpoint adjustable from 0 to 1999 μS/cm
  • Overtime adjustable, typically from 5 to approximately 30 minutes
  • Temperature Compensation automatic from 5 to 50°C (41 to 122°F) with beta =2%/ºC
  • Power Supply models “-0”: 12 VDC adapter (included)
  • models “-1”: 115/230 VAC; 50/60Hz
  • Dimensions 83 x 53 x 99 mm

Ordering Information  BL983313-1 (115/230 VAC) and BL983313-0 (12 VDC) are supplied with mounting brackets, transparent cover and instruction manual.

ขนาดของ Panel สำหรับ EC Controller รุ่น BL983313

หัววัดค่าคอนดักติวิตี้สำหรับ EC Controller รุ่น BL983313
